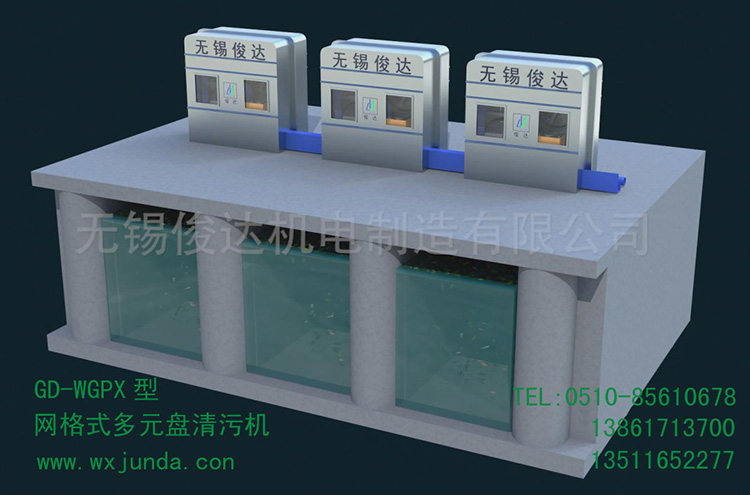

Model: GD—WG—PX—□□ (hole size)

Application:

The mesh disc cleaner is a kind of circulating water system used in nuclear power, thermal power, urban water supply, municipal, metallurgical, chemical and so on. It can be used together with the trashrack on the upstream side, which can effectively intercept and remove the water grass, leaves and other small pollutants in the water flow; Jellyfish, algae, fish and shrimp and other aquatic organisms; In order to ensure the safe and economic operation of the water intake project, it is necessary to prevent the impurities in the circulating water from entering the exchanger, pump and other key equipment of the water intake. The modular design of the trash cleaning machine can be directly applied to the channel plate sluice (if the river channel is too wide, the floating box can be used for assembly and connection).

Composition:

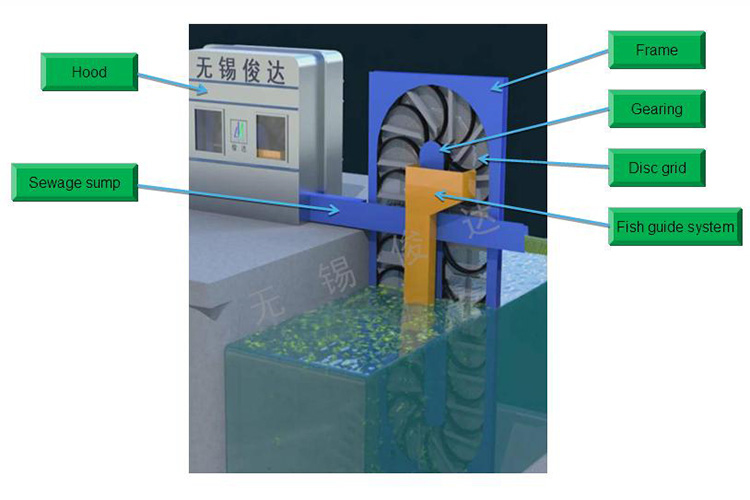

The mesh disc cleaner is mainly composed of frame, transmission system, disc grid, flushing system, sewage collection tank, mechanical safety protection system, electric control system, etc. (in order to protect the ecology, the equipment can be designed with a fish guiding system to protect fish reproduction).

Operating principle:

The operation of the cleaning machine can be automatically controlled by intelligent program. When the driving device is running, it drives the chain wheel and the transmission chain to make the disc grid rotate in the direction of the water flow section. When the water flows through the net plate, the dirt is intercepted and lifted up with the grid. The dirt is flushed into the sewage collection tank through the flushing system, and the sewage collection tank extends to the side platform of the orifice to discharge the dirt to the discharge area, so as to achieve the purpose of filtering the water quality.

Features:

(1) Modular production, simple and reasonable structure, high stability, easy maintenance, low maintenance work;

(2) Through the intelligent program full-automatic control, the unattended (remote monitoring) is realized, and the degree of automation is high;

(3) The use of grid cleaning, can effectively intercept small dirt, and can be more demand for rapid replacement of different mesh diameter disc mesh;

(4) The active transmission part is located above the water surface, which is easy to install, easy to maintain and has no impact on the water quality;

(5) The head loss is very small, and there is only one flow mode, so the water flow of traditional equipment needs to go through the secondary filter screen, while the water flow of this equipment only needs to go through the primary filter screen;

(6) The overall size is small, saving civil engineering investment, and can adapt to various water intakes, water outlets and channels.
